Drilling fluids
1.Drilling bentonite.
2.Exclusively self-retained technologies.
3.Pass the ISO9001 and ISO14001 Certification.
Bentonite for drilling
Bentonite undergoes great expansion when it is caught in water, so it possesses good characteristics of colloids, and it can add viscosity of suspension. When used for drilling mud, it can add lubrification of drilling too can clean rock cuttings produced in the course of drilling well. It can be extensively used for drilling construction of complex tectonic layer to avoid the hole trouble.
The product is well-known for the good performance of good hydration, strong expansion with water, large exchange amount of positive ion and high mud production rate.
OCMA Grade
|
Performance |
Standard- OCMA |
Huawei Standard- OCMA |
|
Viscometer dial reading at 600r/min |
≥30 |
35 |
|
Yield point/Plastic Viscosity Ratio |
≤6 |
4 |
|
Filtrate volume /ml |
≤16 |
12 |
|
Residue of diameter 75um% |
≤2.5 |
2 |
|
Moisture content % |
≤13 |
11 |
API Grade
|
Requirement |
Standard-API |
Huawei Standard- API |
|
Viscometer dial reading at 600r/min |
≥30 |
35 |
|
Yield point/Plastic Viscosity Ratio |
≤3 |
2.4 |
|
Filtrate volume /ml |
≤15 |
12 |
|
Residue of diameter 75um/% |
≤4.0 |
3.0 |
HUAWEI EXTENDED BENTONITE
|
Requirement |
Standard |
|
Viscometer dial reading at 600r/min |
≥70 |
|
Yield point/Plastic Viscosity Ratio |
≤6.0 |
|
Filtrate volume /ml |
≤15 |
|
Residue of diameter 75um/% |
≤4 |
|
Moisture content % |
≤10 |
|
Dosage of powder |
50% of API bentonite |
Directional crossing bentonite
HUAWEI Directional Crossing Bentonite has good Thixotropy andSuspension property ,dissolving speed, strong rheological properties, high mud-making rate, good lubricating performance, low friction coefficient, etc, which made mud soil has stronger ability of carrying drilling cuttings and protect the hole wall and the hole in the wall formed certain mud skin, maintain the stability of hole wall, prevent infiltration of advantages, is the ideal geological exploration drilling and trenchless through engineering materials .According to the requirements of the engineering geological conditions.
|
Performance |
Standard |
|
Viscometer dial reading at 600r/min |
≥45 |
|
Yield point/Plastic Viscosity Ratio |
≤3 |
|
Filtrate volume /ml |
≤15 |
|
Residue of diameter 75um% |
≤4.0 |
Salt resistance bentonite
Application of Manufacturing Techniques of Slurry by Seawater ,anti- salt bentonite from environmental geographical restrictions to get water,unaffected by severe weather, can be used at any time. It has a fast speed of dissolving, good hydration , high mud-making rate, very thin, strong stability, high abaility of solid wall, low drill swing resistance, high drilling rate etc. Especially encountered sediment layers and salt in the construction, can prevent to collapse with strong inhibition ,also prevent to expand of the holes, reduce to meet resistance in the drilling process, be not to the end or sticking, etc.
|
Performance |
Standard |
|
Viscometer dial reading at 600r/min |
≥35 |
|
Yield point/Plastic Viscosity Ratio |
≤3.0 |
|
Filtrate volume /ml |
≤14 |
|
Residue of diameter 75um/%≤ |
≤4.0 |
Organic bentonite clay for drilling
|
Product Name |
Refined Organic Bentonite Thickener Rheological agent(HW-Y1) |
|
|
Appearance |
Light White or light yellow, free flowing powder |
|
|
Granularity(<76um or 200mesh)% |
≥95 |
|
|
Moisture content (@105°C,2hours)% |
≤3.5 |
|
|
Arsenic content(As) mg/kg |
≤5 |
|
|
Heavy metal content (pb) mg/kg |
≤15 |
|
|
Gell-rate of powder |
≥95 |
|
|
Loss on ignition % |
≥32 |
|
|
Advantage |
Super Suspending, Strong Thickening Ability, Good Thixotropy |
|
|
Application |
Using low polar solvents ,for Drilling Fluids |
|
|
Use method |
Can be added directly, high speed dispersing |
|
A.Wy choose HW Group?
1) We are the STATE-LEVEL KEY HIGH-TECH ENTERPRISE of manufacturing bentonite in China.
2) We are one of the largest bentonite manufacturer in China, and specialized in researching and developing bentonite for over 30 years.
3) Own almost 1.5 million square meters bentonite mine with high Montmorillonite content.
4) Own tens of state patented technologies.
5) We are able to provide you the steady quality all the time with exclusively self-retained technologies.
B. Partners of HW Group:

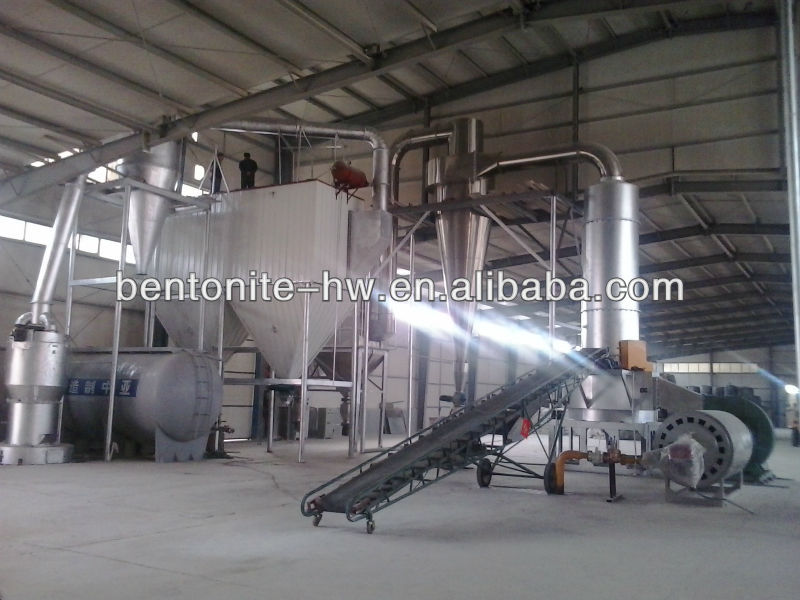

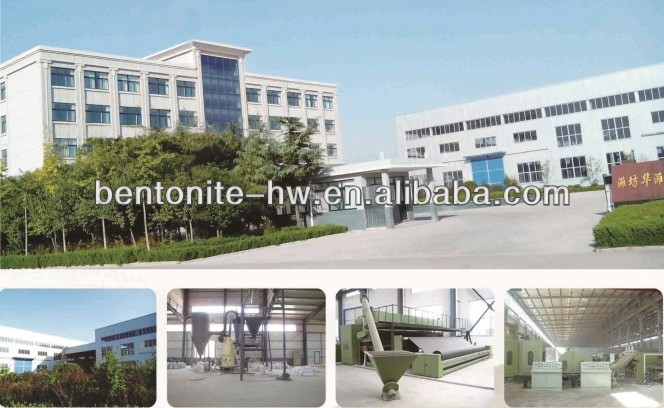

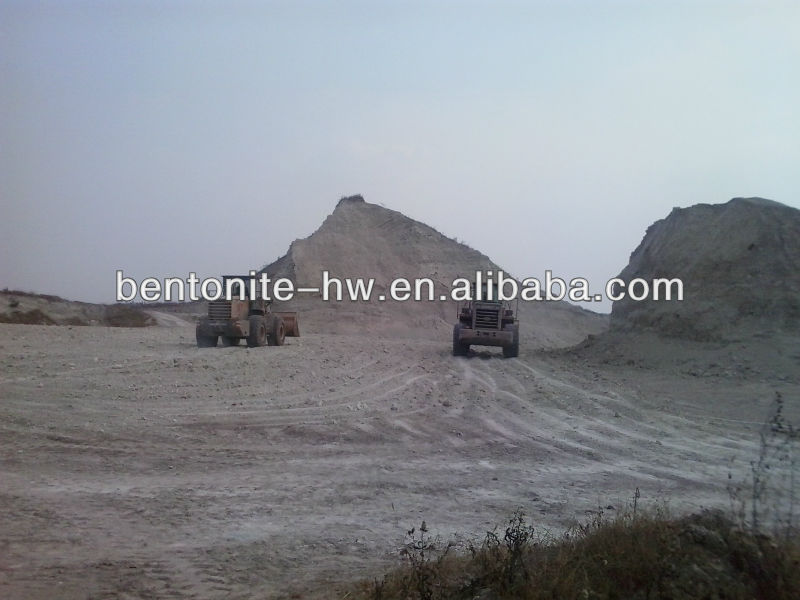

C.The VIEWS of factory,mine,patented certificates,ISO9001 and ISO14001 Certifications.
